Lanbon L8 LCD Switch

Device Type: switch
Electrical Standard: global
Board: esp32
Difficulty: Disassembly required, 3/5

Product Images

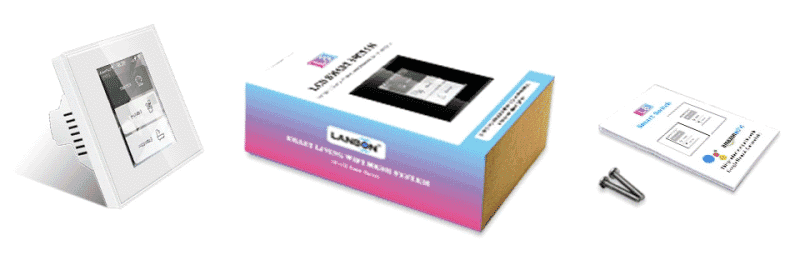

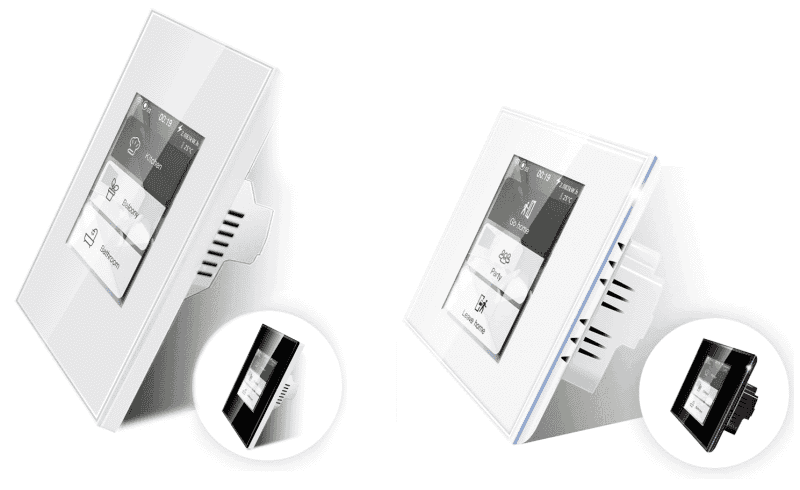

Lanbon L8 models Lanbon L8 box

Description

L8-HS: 3 Relays - load up to 200W/gang
L8-HD: 1 Dimmer - load up to 200W/gang
L8-HB: Boiler switch - load up to 16A
L8-HT: Thermostat switch - not tested!

Choose a model that works with Apple HomeKit (has this sticker on) because those are WiFi versions with the internal antenna connected to the ESP-WROOVER-B module. Do NOT buy a version that is powered by Tuya Smart Life because the internal antenna is connected to the Tuya chip. Those devices will have very bad WiFi reception of the ESP32!

Features

ESP32-WROVER-B
FT6336U touch controller (capacitive)
ST7789V display controller, driving a 240x320 LCD screen
8 MB flash
8 MB PSram
Dimmable backlight (PWM)
Mood LEDS (PWM, not uniform)
Built-in PSU, input voltage 110-250V ~ 50-60Hz AC
Energy monitoring (not all revisions)
Standard wallmount form factor both EU and US

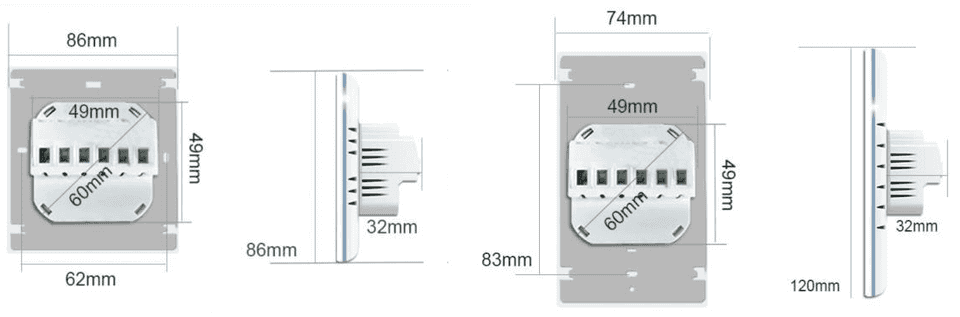

Lanbon L8 dimensions

The models have the same recessed housing sliding into the wall, sized 50x50mm, with rounded corners creating a diameter of about 59mm. This makes them suitable for both EU and US wall fixtures. The EU model fits in a properly deployed, standard 60mm round wall box and can be fixed with two side screws (use the screws which belong to the box instead of the ones shipped with the device), the US model fits in the standard rectangular box and can be fixed through the oval holes located 3 1/4" apart. The depth of the wall box has to be at least 35-40mm because some room is needed for the wires coming out straight of the device.

Although the moodlight goes nicely around the case, coloring is not uniform, and this is not a software issue.

GPIO Pinout

Pin	Function
GPIO22	SPI (Display) CS
GPIO21	SPI (Display) DC
GPIO18	Reset (Display)
GPIO19	SPI (Display) CLK
GPIO23	SPI (Display) MOSI
GPIO25	SPI (Display) MISO
GPIO0	I2C (Touchscreen) SCL
GPIO4	I2C (Touchscreen) SDA
GPIO5	Backlight (PWM out)
GPIO26	Moodlight Red (PWM out)
GPIO32	Moodlight Green (PWM out)
GPIO33	Moodlight Blue (PWM out)
GPIO35	HLW8012 (CF)

Hardware revisions having energy monitoring are equipped with HLW8012 chip where CF1 & SEL pins are not connected to the MCU, thus this meter only provides pulses depending of Power. Voltage and Current measurement is not possible.

3-gang version L8-HS

Pin	Function
GPIO12	Relay (K3)
GPIO14	Relay
GPIO27	Relay

Boiler version L8-HB

Pin	Function
GPIO27	Relay 16A (K3)

Dimmer version L8-HD

Pin	Function
GPIO12	Dimmer TX (K3)

Flashing

No need to solder to flash this device. All the pins required for flashing are available on the header that connects the plate to the base. Use thinner solid core wires (eg. salvaged from Ethernet cables) and insert them in the pin header (Dupont or breadboard wires are too thick).

Steps:

Disengage the high-voltage power.
Detach the panel from the PSU power supply.
Connect RX, TX, IO0, GND and 5V pins to the female pinheader.
Because there is no RESET pin, you need to powercycle the board while IO0 is connected to GND to activate flash mode.

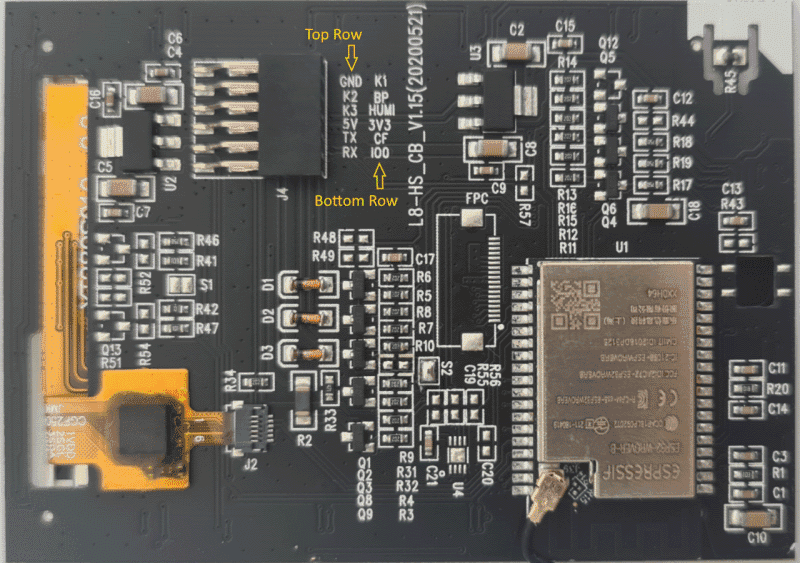

Lanbon L8 pcb

Make sure you have a USB to TTL serial adapter than can provide sufficient power on the 5V pin. Once the serial connections are made, you can erase flash, power-cycle the board and then flash the ESPHome modern format binary (*-factory.bin) using esptool.

You can follow this flashing guide on blakadder.com or this discussion post with instructions and photos to flash the firmware without having to open the device.

To calibrate the power values measured by the pulse_meter sensor, use an external power meter which is known to make correct measurements, and attach an ohmic load of about 70-100W (an incandescent bulb, or a small heater). In the config, replace the multiply value with 1, and flash the device. Turn on the load and observe the reading on your external power meter and the value reported by the sensor. Your calibrated new multiply value will be external power meter measurement / the value reported.

Example configuration for 3-gang version (L8-HS)

With classic graphics renderer

With this example configuration, after you connect the device to your network, the IP address will be shown on top of the screen. Long-pressing will draw red dots, this demonstrates the functionality of the touch screen.

esphome:
  ...
  platformio_options:
    build_unflags: -Werror=all

esp32:
  board: esp-wrover-kit
  framework:
    type: esp-idf

psram:
  mode: octal
  speed: 80MHz

spi:
  clk_pin: GPIO19
  mosi_pin: GPIO23
  interface: hardware

i2c:
  sda: GPIO4
  scl:
    number: GPIO0
    ignore_strapping_warning: true

output:
  - platform: ledc
    id: backlight_output
    frequency: 1220Hz
    pin:
      number: GPIO5
      ignore_strapping_warning: true
  - platform: ledc
    id: mood_red
    frequency: 1220Hz
    pin:
      number: GPIO26
  - platform: ledc
    id: mood_green
    frequency: 1220Hz
    pin:
      number: GPIO32
  - platform: ledc
    id: mood_blue
    frequency: 1220Hz
    pin:
      number: GPIO33

  - id: relay_1
    platform: gpio
    pin:
      number: GPIO12
      ignore_strapping_warning: true
  - id: relay_2
    platform: gpio
    pin: GPIO14
  - id: relay_3
    platform: gpio
    pin: GPIO27


light:
  - platform: monochromatic
    output: backlight_output
    name: LCD Backlight
    id: display_backlight
    restore_mode: ALWAYS_ON

  - platform: rgb
    name: Moodlight
    red: mood_red
    green: mood_green
    blue: mood_blue
    restore_mode: RESTORE_AND_OFF

  - platform: binary
    name: Relay 1
    output: relay_1
  - platform: binary
    name: Relay 2
    output: relay_2
  - platform: binary
    name: Relay 3
    output: relay_3

sensor:
  - platform: pulse_meter
    name: Load power
    pin: GPIO35
    device_class: power
    state_class: measurement
    unit_of_measurement: 'W'
    internal_filter_mode: PULSE
    accuracy_decimals: 1
    filters:
      - filter_out: nan
      - throttle_average: 60s
      - multiply: 0.0813287514318442  # Calibration may be needed

text_sensor:
  - platform: wifi_info
    ip_address:
      name: IP Address
      id: txt_ip

font:
  - file: "gfonts://Roboto"
    id: roboto
    size: 22
    bpp: 4

touchscreen:
  - platform: ft63x6
    id: tft_touch
    display: tft_display
    update_interval: 50ms
    threshold: 1
    calibration:
      x_max: 240
      y_max: 320

display:
  - platform: ili9xxx
    model: st7789v
    id: tft_display
    dimensions:
      width: 240
      height: 320
    transform:
      swap_xy: false
      mirror_x: true
      mirror_y: true
    data_rate: 80MHz
    cs_pin: GPIO22
    dc_pin: GPIO21
    reset_pin: GPIO18
    auto_clear_enabled: false
    invert_colors: false
    update_interval: 1s
    lambda: |-
      it.printf(0, 0, id(roboto), Color(128, 128, 128), "%s", id(txt_ip).state.c_str(), display::COLOR_OFF);
      auto touch = id(tft_touch)->get_touch();
      if (touch) // or touch.has_value()
        it.filled_circle(touch.value().x, touch.value().y, 7, Color(255, 0, 0));

With LVGL graphics renderer

With this example configuration, you'll get three toggle buttons on the screen each controlling the corresponding relay, labels displaying the Wi-Fi signal and the power levels, and the IP address. You'll also get a number component to set the idle time of the backlight, crossfading with the moodlight.

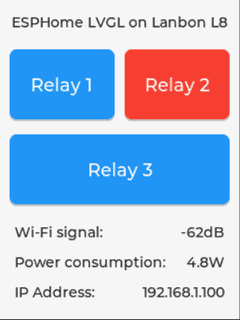

Lanbon L8 ESPHome LVGL

esphome:
  ...
  platformio_options:
    build_unflags: -Werror=all

esp32:
  board: esp-wrover-kit
  flash_size: 8MB
  framework:
    type: esp-idf
    sdkconfig_options:
      COMPILER_OPTIMIZATION_SIZE: y

psram:
  mode: octal
  speed: 80MHz

spi:
  clk_pin: GPIO19
  mosi_pin: GPIO23
  interface: hardware

i2c:
  sda: GPIO4
  scl:
    number: GPIO0
    ignore_strapping_warning: true

output:
  - platform: ledc
    id: backlight_output
    frequency: 1220Hz
    pin:
      number: GPIO5
      ignore_strapping_warning: true
  - platform: ledc
    id: mood_red
    frequency: 1220Hz
    pin:
      number: GPIO26
  - platform: ledc
    id: mood_green
    frequency: 1220Hz
    pin:
      number: GPIO32
  - platform: ledc
    id: mood_blue
    frequency: 1220Hz
    pin:
      number: GPIO33

  - id: relay_1_out
    platform: gpio
    pin:
      number: GPIO12
      ignore_strapping_warning: true
  - id: relay_2_out
    platform: gpio
    pin: GPIO14
  - id: relay_3_out
    platform: gpio
    pin: GPIO27

light:
  - platform: monochromatic
    output: backlight_output
    name: Backlight
    id: display_backlight
    restore_mode: ALWAYS_ON
    default_transition_length: 1s
    on_state:
      - if:
          condition:
            lambda: return id(display_backlight).remote_values.is_on();
          then:
            - light.turn_off:
                id: display_moodlight
                transition_length: 2s
          else:
            - light.turn_on:
                id: display_moodlight
                transition_length: 2s

  - platform: rgb
    name: Moodlight
    id: display_moodlight
    red: mood_red
    green: mood_green
    blue: mood_blue
    restore_mode: RESTORE_AND_OFF
    default_transition_length: 1s

  - platform: binary
    name: Relay 1
    output: relay_1_out
    id: relay_1
    internal: true
    restore_mode: RESTORE_DEFAULT_OFF
    on_turn_on:
      - lvgl.widget.update:
          id: btn_relay_1
          state:
            checked: true
    on_turn_off:
      - lvgl.widget.update:
          id: btn_relay_1
          state:
            checked: false

  - platform: binary
    name: Relay 2
    output: relay_2_out
    id: relay_2
    internal: true
    restore_mode: RESTORE_DEFAULT_OFF
    on_turn_on:
      - lvgl.widget.update:
          id: btn_relay_2
          state:
            checked: true
    on_turn_off:
      - lvgl.widget.update:
          id: btn_relay_2
          state:
            checked: false

  - platform: binary
    name: Relay 3
    output: relay_3_out
    id: relay_3
    internal: true
    restore_mode: RESTORE_DEFAULT_OFF
    on_turn_on:
      - lvgl.widget.update:
          id: btn_relay_3
          state:
            checked: true
    on_turn_off:
      - lvgl.widget.update:
          id: btn_relay_3
          state:
            checked: false

display:
  - platform: ili9xxx
    model: st7789v
    id: tft_display
    dimensions:
      width: 240
      height: 320
    transform:
      swap_xy: false
      mirror_x: true
      mirror_y: true
    data_rate: 80MHz
    cs_pin: GPIO22
    dc_pin: GPIO21
    reset_pin: GPIO18
    auto_clear_enabled: false
    invert_colors: false
    update_interval: never

touchscreen:
  - platform: ft63x6
    id: tft_touch
    display: tft_display
    update_interval: 50ms
    threshold: 1
    calibration:
      x_max: 240
      y_max: 320
    on_release:
      - if:
          condition: lvgl.is_paused
          then:
            - lvgl.resume:
            - lvgl.widget.redraw:
            - light.turn_on:
                id: display_backlight
                transition_length: 150ms
            - light.turn_off:
                id: display_moodlight
                transition_length: 500ms

text_sensor:
  - platform: wifi_info
    ip_address:
      name: IP Address
      id: txt_ip
      on_value:
        - lvgl.label.update:
            id: lbl_ipa
            text: !lambda return x.c_str();

sensor:
  - platform: pulse_meter
    name: Lanbon Power Consumption
    id: sensor_pulse_meter
    pin: GPIO35
    unit_of_measurement: 'W'
    device_class: power
    state_class: measurement
    internal_filter_mode: PULSE
    accuracy_decimals: 1
    filters:
      - filter_out: nan
      - throttle_average: 60s
      - multiply: 0.0813287514318442  # Calibration may be needed
    on_value:
      then:
        - lvgl.label.update:
            id: lbl_powerv
            text: !lambda |-
              static char buf[10];
              snprintf(buf, 10, "%7.1fW", id(sensor_pulse_meter).get_state());
              return buf;

  - platform: wifi_signal # Reports the WiFi signal strength/RSSI in dB
    name: "WiFi Signal dB"
    id: wifi_signal_db
    entity_category: "diagnostic"
    on_value:
      then:
        - lvgl.label.update:
            id: lbl_wifiv
            text: !lambda |-
              static char buf[10];
              snprintf(buf, 10, "%7.0fdBm", id(wifi_signal_db).get_state());
              return buf;

number:
  - platform: template
    name: Backlight timeout
    optimistic: true
    id: display_timeout
    unit_of_measurement: "s"
    initial_value: 45
    restore_value: true
    min_value: 10
    max_value: 1800
    step: 5
    mode: box

lvgl:
  touchscreens:
    - touchscreen_id: tft_touch
  displays:
    - display_id: tft_display
  buffer_size: 100%
  on_idle:
    timeout: !lambda "return (id(display_timeout).state * 1000);"
    then:
      - logger.log: "LVGL is idle"
      - light.turn_on:
          id: display_moodlight
          transition_length: 500ms
      - light.turn_off:
          id: display_backlight
          transition_length: 1s
      - lvgl.pause:
  log_level: WARN
  color_depth: 16

  pages:
    - id: local_controls
      skip: false
      pad_all: 0
      widgets:
      - label:
          y: 15
          align: TOP_MID
          text_align: center
          text: "ESPHome LVGL on Lanbon L8"

      - btn:
          x: 10
          y: 50
          width: 105
          height: 70
          checkable: true
          id: btn_relay_1
          widgets:
            - label:
                align: center
                text_color: 0xFFFFFF
                text_font: montserrat_18
                text: 'Relay 1'
          on_click:
            light.toggle: relay_1

      - btn:
          x: 125
          y: 50
          width: 105
          height: 70
          checkable: true
          id: btn_relay_2
          widgets:
            - label:
                align: center
                text_color: 0xFFFFFF
                text_font: montserrat_18
                text: 'Relay 2'
          on_click:
            light.toggle: relay_2

      - btn:
          x: 10
          y: 135
          width: 220
          height: 70
          checkable: true
          id: btn_relay_3
          widgets:
            - label:
                align: center
                text_color: 0xFFFFFF
                text_font: montserrat_18
                text: 'Relay 3'
          on_click:
            light.toggle: relay_3

      - label:
          id: lbl_wifis
          x: 15
          y: 225
          width: 220
          height: 20
          text: 'Wi-Fi signal:'

      - label:
          id: lbl_wifiv
          x: 105
          y: 225
          width: 120
          height: 20
          text: '...dB'
          text_align: right

      - label:
          id: lbl_powerc
          x: 15
          y: 255
          width: 220
          height: 20
          text: 'Power consumption:'

      - label:
          id: lbl_powerv
          x: 120
          y: 255
          width: 105
          height: 20
          text: '...W'
          text_align: right

      - label:
          id: lbl_ipn
          x: 15
          y: 285
          width: 220
          height: 20
          text: 'IP Address:'

      - label:
          id: lbl_ipa
          x: 120
          y: 285
          width: 105
          height: 20
          text: '0.0.0.0'
          text_align: right

Edit this page on GitHub

Lanbon L8 LCD Switch

Lanbon L8 LCD Switch

Device Type: switchElectrical Standard: globalBoard: esp32Difficulty: .css-lugakg{font-weight:normal;}Disassembly required, 3/5

Product Images

Description

Features

GPIO Pinout

3-gang version L8-HS

Boiler version L8-HB

Dimmer version L8-HD

Flashing

Example configuration for 3-gang version (L8-HS)

With classic graphics renderer

With LVGL graphics renderer

On this page

Device Type: switch
Electrical Standard: global
Board: esp32
Difficulty: Disassembly required, 3/5
